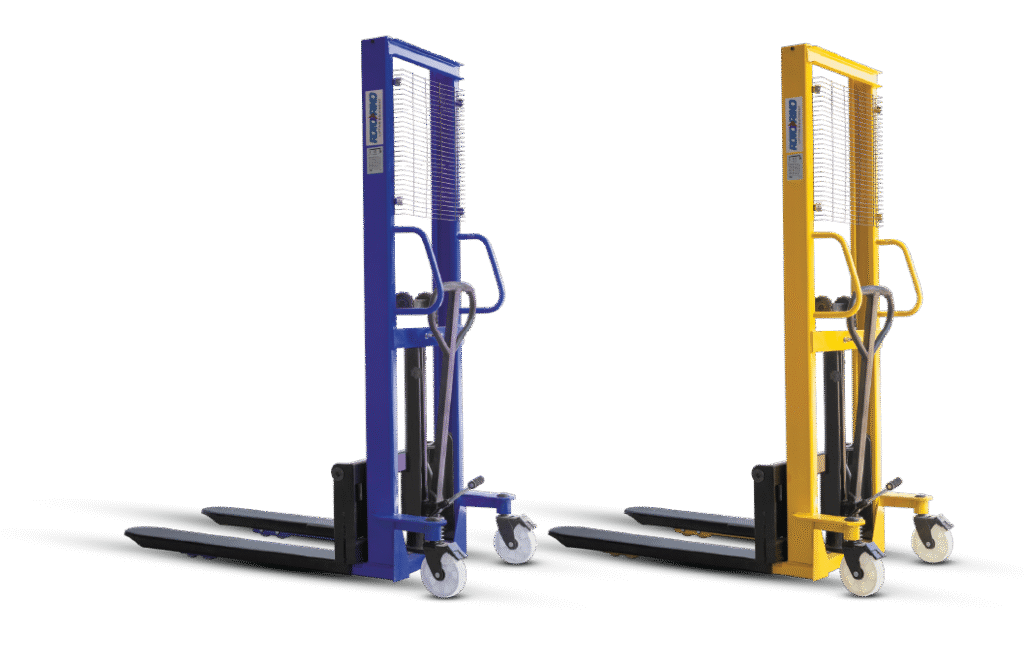

Manual Stacker
Manual Stacker
Our range of Pallet Trucks is designed for efficient material handling. Available with
nylon wheels and capacities ranging from 2.5 tons to 5 tons, these trucks are built
to withstand heavy loads and provide smooth maneuverability. We offer various
sizes, including 560x1150mm (2.5 ton), 680x1200mm (3 ton and 5 ton), and 550×1200
mm (3 ton), ensuring a suitable option for your specific pallet handling needs.
| Main Parameter | Unit | ROTOMSTCK1601 | ROTOMSTCK1602 | |
|---|---|---|---|---|
| Rated Hoisting Mass | kg | 1000 | 2000 | |
| Center of Load | mm | 600 | 600 | |
| Maximum Lift Height | 1600 | 1600 | ||
| Minimum Fork Height | 90 | 90 | ||
| Length of Fork | 1150 | 1150 | ||
| Maximum Width of Fork | 560 | 560 | ||
| Lifting Speed with Loading | mm/time | >16 | >12 | |
| Lowering speed | kg | Controllable | Controllable | |
| Dimension | Overall Length | mm | 1650 | 1650 |
| Overall Width | 680 | 690 | ||
| Overall Height | 2012 | 2110 | ||
| Wheel | Outer Diameter of Front Wheel | 78 | 78 | |
| Outer Diameter of Rear Wheel | 180 | 180 | ||
| Minimum clearance from ground | 25-30 | 25-30 | ||
| Extreme radius of turn | 1540 | 1590 | ||
| Dead weight | kg | 154 | 285 |
