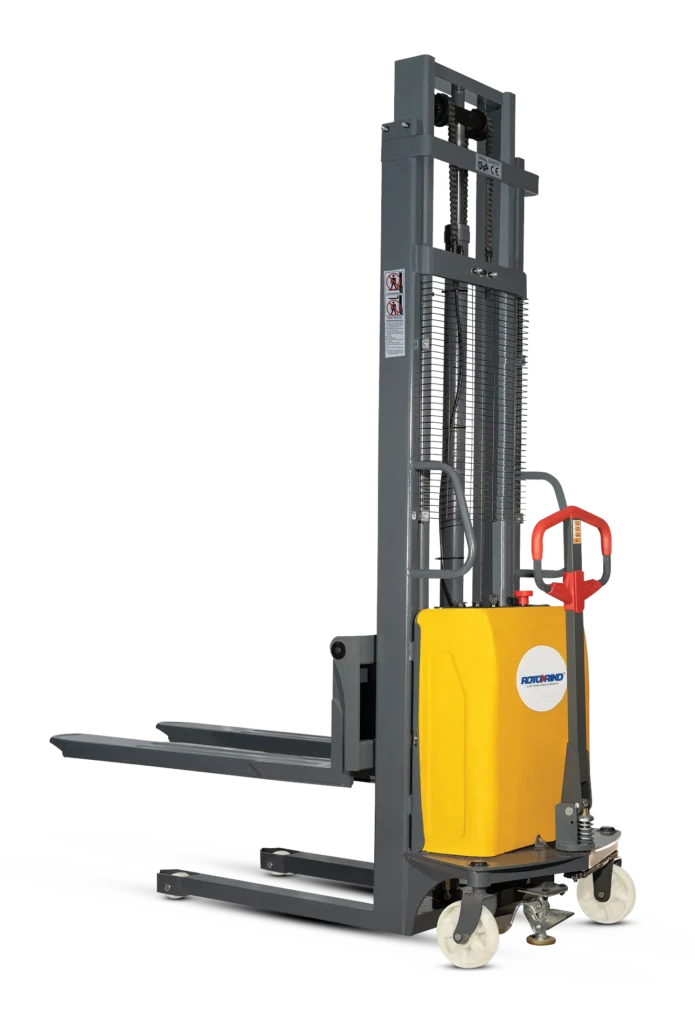

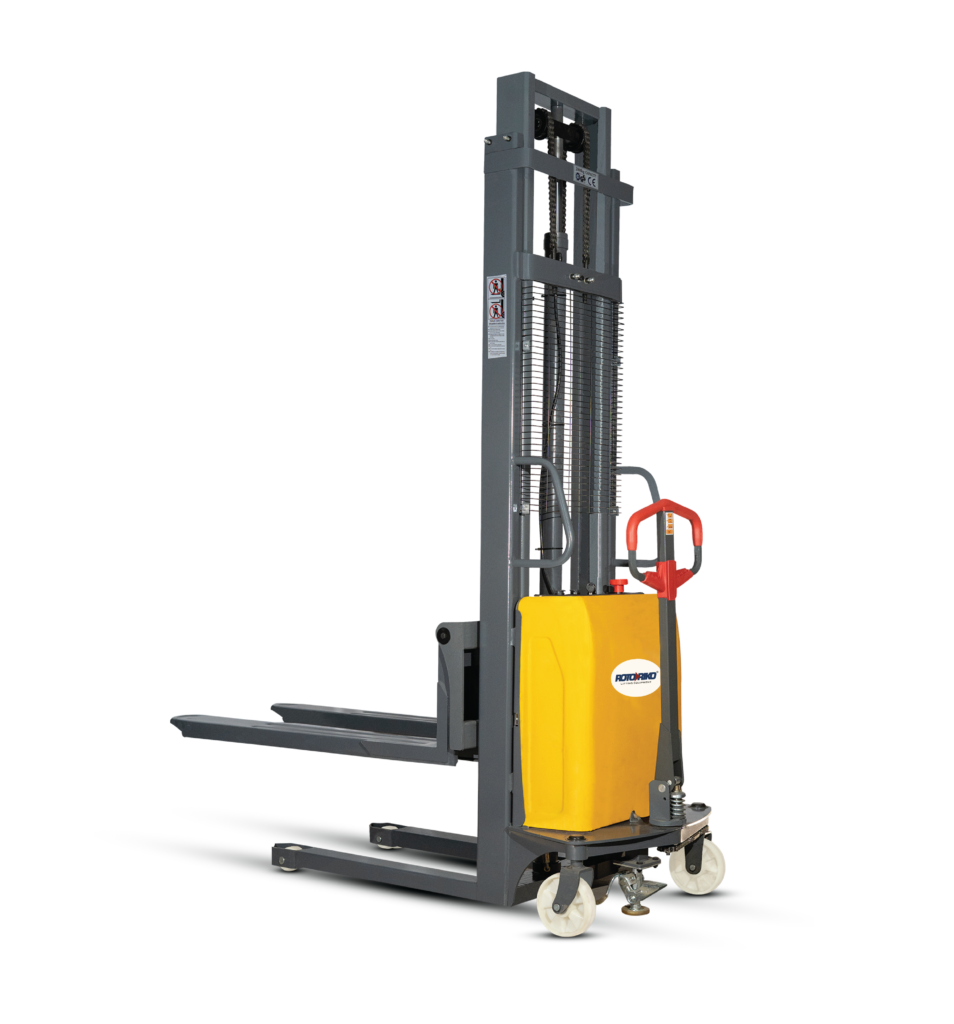

SEMI AUTOMATIC ELECTRIC STACKER
SEMI AUTOMATIC ELECTRIC STACKER
Engineered for efficiency, this semi-automatic stacker offers a 2-ton capacity with a 3.5-meter lifting height, making it ideal for heavy material stacking in warehouses and logistic operations.
Product Gallery
TECHNICAL SPECIFICATION
| Models | ROTOSESTCK0302 | Unit |
|---|---|---|
| Rated Load | 1000/1500/2000 | KG |
| Center Distance of Load | 475/575 | MM |
| Wheels | Polyurethane | |
| Steering Wheel Dimensions | 180x50 | MM |
| Fork Front Wheel Dimensions | 80x50 | MM |
| Number of Wheels Front & Rear | 2x2 | |
| Elevation | 1600/2000/2500/3000/3500 | MM |
| Height of Door Frame when retracted | 2085/1585/1835/2085/2335 | MM |
| Maximum Height of Gantry During Operation | 2085/2410/2910/3410/3910 | MM |
| Minimum Height of Forks | 90 | MM |
| Total Length | 1550/1750 | MM |
| Body width | 800 | MM |
| Maximum Adjustable Outer Width | 700 | MM |
| Effective fork length | 1150 | MM |
| Fork size | 170x55 | MM |
| Floor clearance at lower end of door frame | 25 | MM |
| Turn radius | 1415 | MM |
| Increase speed, full load, no load | 135/150 | MM/S |
| Rate of descent, full load, no load | 100/120 | MM/S |
| Increase motor power | 1.6 | KW |
| Battery voltage / rated capacity | 12v/105A | V/Ah |
Ready to experience easier everyday?
If you are ready for faster, safer and smarter handling, Rotoriko is ready with the solution that gets you there.
