SCISSOR LIFTER
SCISSOR LIFTER

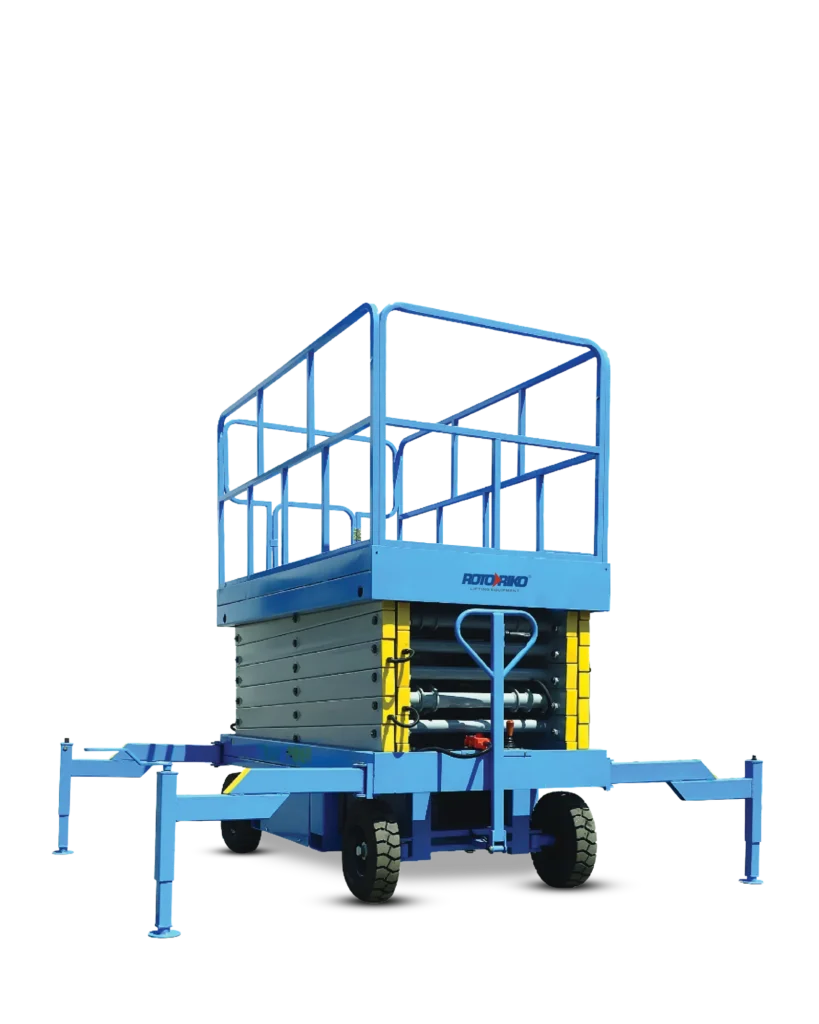

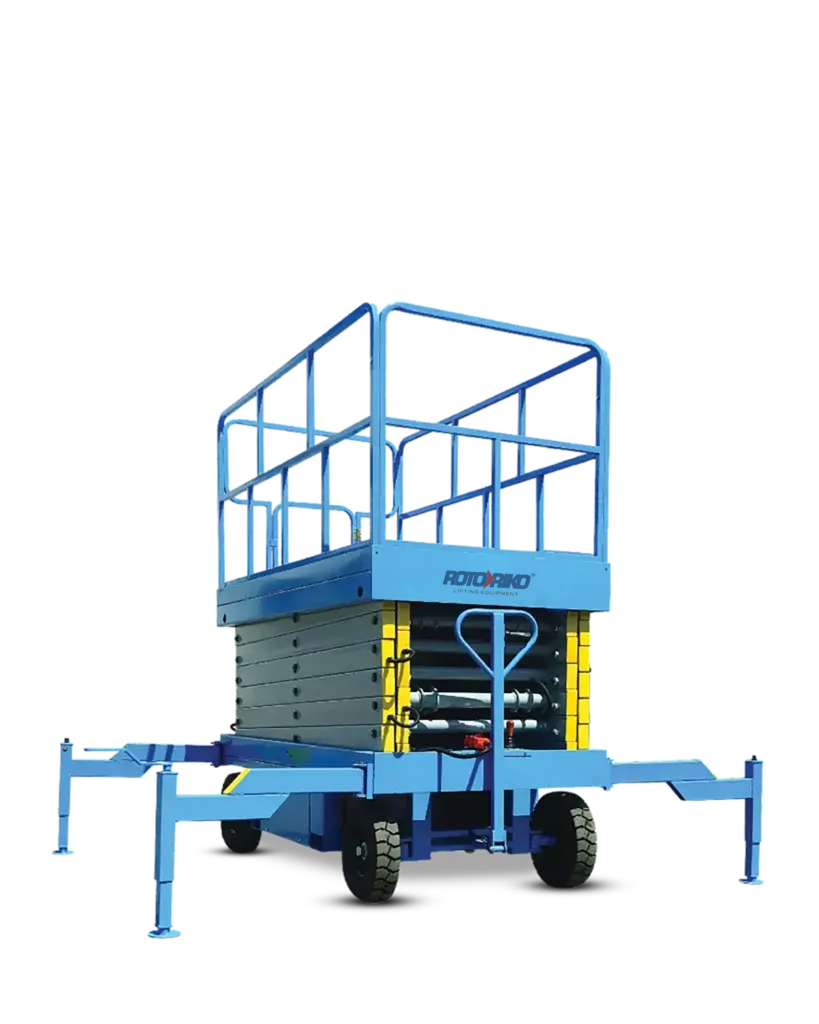

This heavy-duty scissor lifter offers a 500 KG capacity and a lifting height of up to 13 meters. Powered by 440V 3-phase electricity, it ensures safe and efficient vertical movement for industrial tasks.
Product Gallery
TECHNICAL SPECIFICATION
| Models | Unit | ROTOSL500 |
|---|---|---|
| Platform height | m | 12 |
| Working height | m | 14 |
| Platform size | mm | 2305*1530*1100 |
| Overall size | mm | 2796*1670*1750 |
| Total weight | kg | 2400 |
| Platform | mm | 3mm non slip tread plate |
| Chassis | mm | 160*80*3.75 |
| Power and voltage | kw | 3 kW/380V50hz |
| Tyre | 215/75R14C pneumtic tyres*4 | |

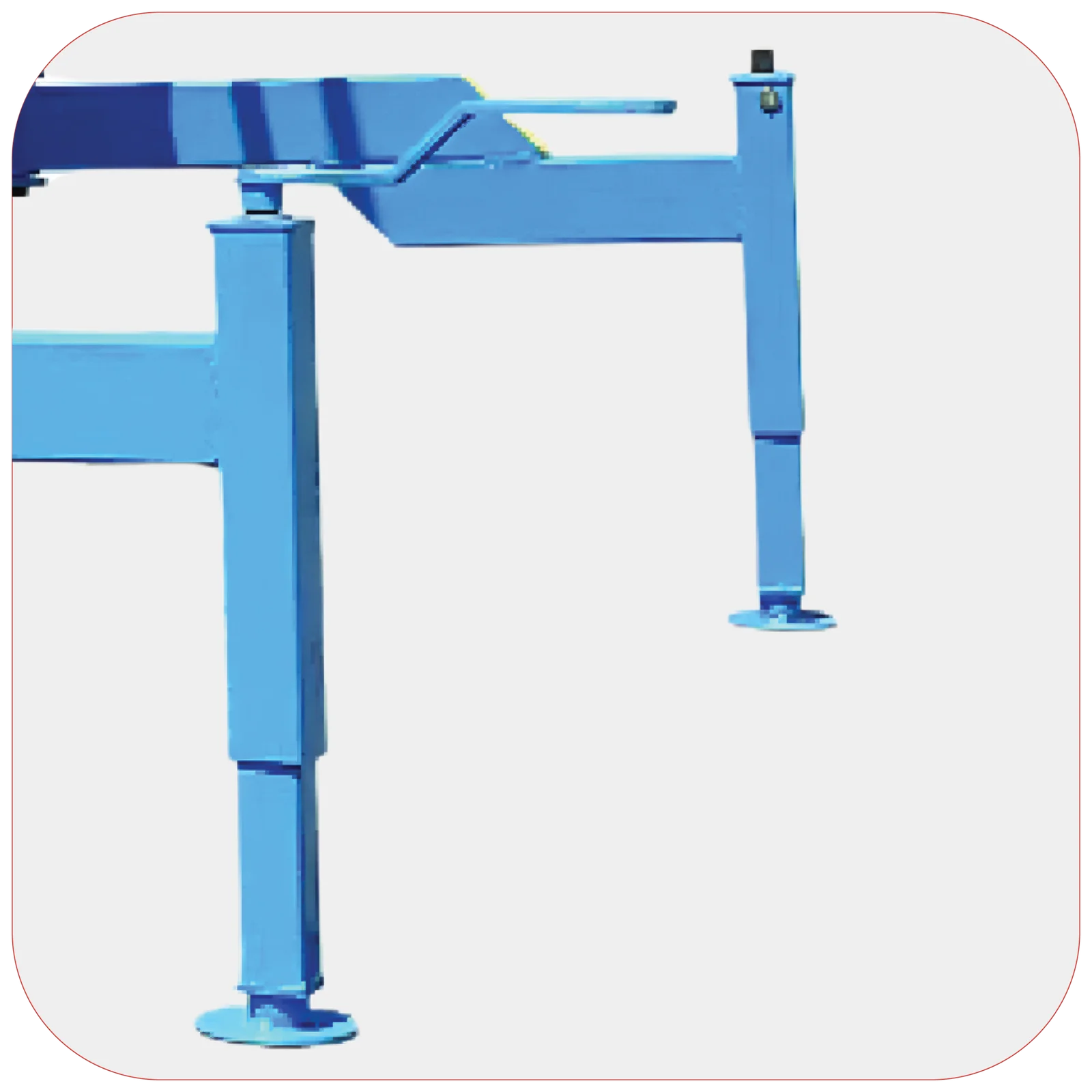

| Outrigger | mm | 120*60*3.75 |
| Limit switch | Renmin brand | |
| Shaft pin | 45# is made of round steel | |
| Hydraulic oil | 32 great wall anti-wear | |
| Lifting speed (Adjustable Speed) | m/min | 4-6 |
