Clutch Winch - Reliable Winching Solutions by Rotoriko

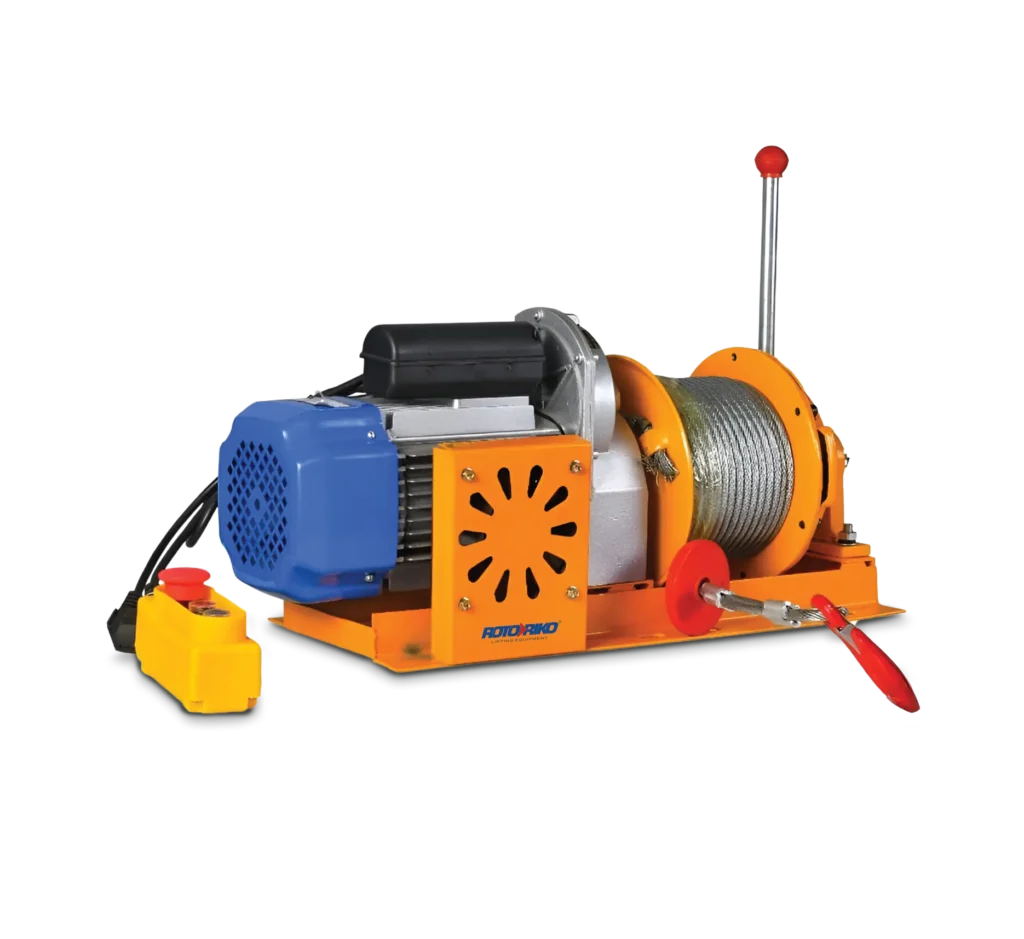

CLUTCH WINCH

The Clutch Winch is a heavy-duty lifting and pulling device designed for a wide range
of industrial and commercial applications. This winch is built for smooth and
controlled operation, featuring a clutch mechanism that allows for precise load
handling and prevents accidental release. With a maximum capacity of 1000 kg and
robust steel construction, it provides reliable performance even in demanding
environments.

This Clutch Winch is designed for versatility and ease of use. It can be mounted on
various surfaces and structures, making it suitable for diverse applications such as
lifting heavy equipment, moving materials, and securing loads. The clutch
mechanism enables smooth and gradual release, ensuring controlled descent and
preventing sudden drops.

Styled Table
Model Unit ROTOCW0101
Winding 100% Copper
Motor Power HP 3
Phase Single
Voltage V/Hz 220/50
Wire Rope Length m 40
Wire Rope Thickness mm 6
Gear Lubrication Grease
LIifting Capacity (Single Wire Rope) kg 500
LIifting Capacity (Double Wire Rope) kg 1000
LIifting Height Single Hook m 40
LIifting Height Double Hook m 20
LIifting Speed (Single Wire Rope) m/min 14
LIifting Speed (Double Wire Rope) m/min 7
