Manual Pallet Trucks for Efficient Material Handling

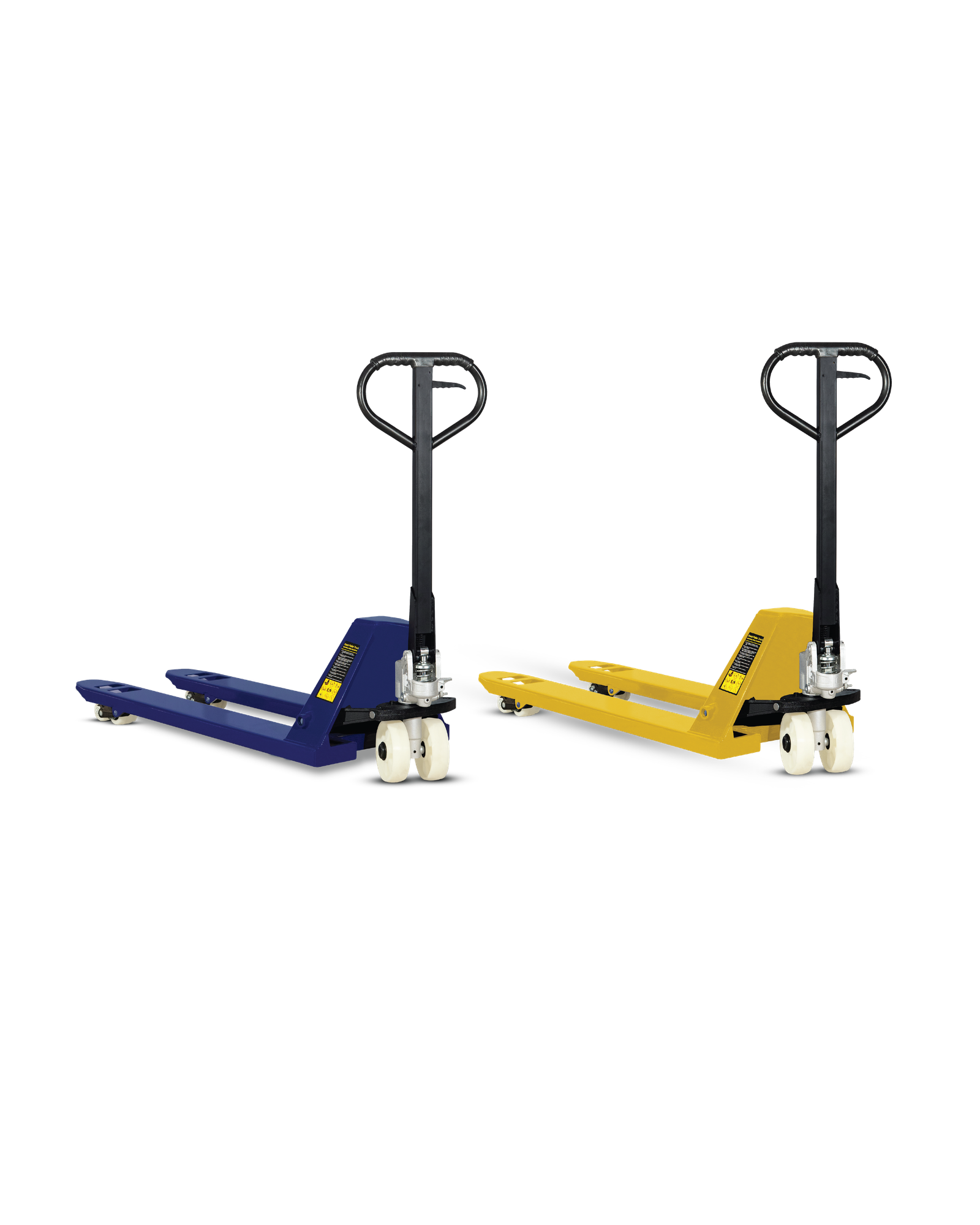

MANUAL PALLET TRUCK
Our range of Pallet Trucks is designed for efficient material handling. Available with
nylon wheels and capacities ranging from 2.5 tons to 5 tons, these trucks are built
to withstand heavy loads and provide smooth maneuverability. We offer various
sizes, including 560x1150mm (2.5 ton), 680x1200mm (3 ton and 5 ton), and 550×1200
mm (3 ton), ensuring a suitable option for your specific pallet handling needs.
| Models | unit | ROTOPT2525 | ROTOPT0303 | ROTOPTB0303 | ROTOPT0505 |
|---|---|---|---|---|---|
| Weight | kg | 2500 | 3000 | 3000 | 5000 |
| Minimum Height | mm | 80 | 80 | 80 | 80 |
| Maximum Height | mm | 200 | 200 | 200 | 200 |
| Elevation | mm | 115 | 115 | 115 | 115 |
| Fork Length | mm | 1200 | 1200 | 1200 | 1200 |
| Inside Width | mm | 230 | 230 | 365 | 365 |
| Outer Width | mm | 550 | 550 | 685 | 685 |
| Weight of Single Fork | mm | 160 | 160 | 160 | 160 |
| Load-bearing Wheel (Single wheel) | mm | 80*70 | 80*70 | 80*70 | 80*70 |
| Steering Wheel | mm | 200*50 | 200*50 | 200*50 | 200*50 |
| Wheel Type | Nylon | Nylon | Nylon | Nylon |
